What is duct rodder 300m |
| Author : Date : 12/10/2015 11:06:09 PM |

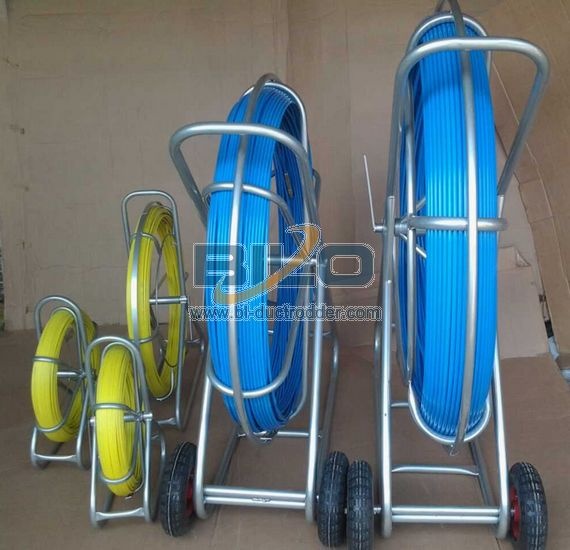

 duct rodder 300m
Duct rodder 300m are composed of fiber glass rod which was extruded by fiber glass and high strength resin at high temperature. This type of rod has high tensile strength and flexibility. It was covered by a high density polyethylene engineering plastic as its protect layer, which make duct rodder cover sliding on surface, durable, corrosion resistant and has good insulation performance, which make them safe for use in cable occupied duct.Duct Rodder fibreglass rod is supplied with detachable pulling eyes. Duct Rod is supported with a large range of accessories that can be interchanged with the pulling eye. The Rod is detectable and comes in 4mm, 6mm and 8mm rod. All methods of tracing conduit from above ground will work with Duct Rod.
All rod has a 1mm sheath of yellow HDPE to render it more noticeable and to protect the fibreglass from wear.
The Duct Rod dispensing units come with a hand operated brake and are strong and durable enough to accommodate up to 300m of 8mm rod.
The pay-off mechanism on the dispenser has a double set of rollers to reduce wear on the sheath of the rod.
The dispenser units are short enough to be stored in the back of panel vans and other small, enclosed vehicles.
Now comes standard with a 1mm copper tracer wire. Simply energize the rod with your transmitter and locate your pipe with the aid of a receiver. |
